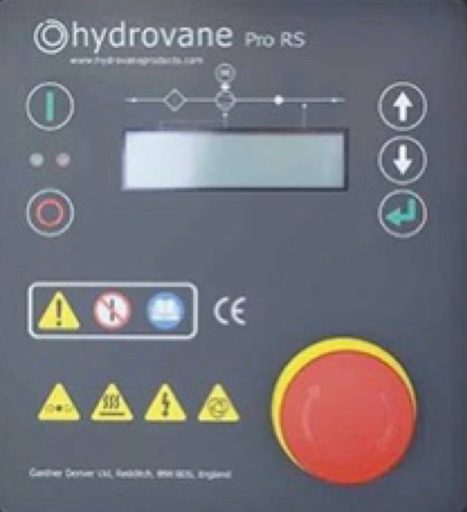

Hydrovane

Pro RS

Change Units
Hold enter and scroll with down arrow.

Master
0157

Replace/Restore
2222

Service
0647

Unlimited Power Fail
8888

Quick Reference

User Manual

S1

Alarm 2118A
Delivery Pressure High

Alarm 2128A
Delivery Temp High

Alarm 2138A
Internal Pressure High

Alarm 2816A
Power Failure

Alarm 4804A
Service Due

Error 0010E
Emergency Stop

Error 0020E
Fan Motor Overload

Error 0030E
Motor Overload Tripped

Error 0080E
Motor Over Temp

Error 0115E
Delivery Pressure Transducer Fault

Error 0119E
Delivery Pressure High

Error 0125E
Delivery Temp Sensor Fault

Error 0129E
Delivery Temp High

Error 0131E
Internal Pressure Below Minimum

Error 0135E
Internal Pressure Transducer Fault

Error 0139E
Internal Pressure High

Error 0821E
Short Circuit on Controller Analog or Digital Supply

Error 0836E
EMC or Controller Internal Error

Error 0846E
Delivery Pressure Transducer Range Set Too Low

Error 0856E
Internal Pressure Transducer Range Set Too Low

Error 0d01E
RS485 Communication Not Established

Error 0d02E
RS485 Communication Lost

Error 0d03E
Communication Error Reported by VFD

Error 0d06E
VFD Error. See P00 - dE.

Error 0d08E
Safety Interlock Error, VFD Physical Start

Error 2d07A
Drive Alarm. See P00 - dE.

Error 2d09A
Motor Overload. Unloads Compressor Until Current Reduces.

Error 3123R
Unit Below Min Temp

Error 3137R
Blowing Down

Error 3d04R
Drive Type Mismatch

Error 3d05R
Motor Type Mismatch

Service
0100

Technician
0121

User
0009

Menu Layout

S1 Version 30+

Alarm 2118A
Delivery Pressure High

Alarm 2128A
Delivery Temp High

Alarm 2138A
Internal Pressure High

Alarm 2816A
Power Failure

Alarm 4804A
Service Due

Error 0010E
Emergency Stop

Error 0020E
Fan Motor Overload

Error 0030E
Motor Overload

Error 0080E
Motor Over Temp

Error 0115E
Delivery Pressure Transducer Fault

Error 0119E
Delivery Pressure High

Error 0125E
Delivery Temp Sensor Fault

Error 0129E
Delivery Temp High

Error 0131E
Internal Pressure Below Minimum

Error 0135E
Internal Pressure Transducer Fault

Error 0139E
Internal Pressure High

Error 0821E
Short Circuit on Controller Analog or Digital Supply

Error 0836E
EMC or Controller Internal Error

Error 0846E
Delivery Pressure Transducer Range Set Too Low

Error 0856E
internal Pressure Transducer Range Set Too Low

Error 0d01E
RS485 Communication Not Established

Error 0d02E
RS485 Communication Lost

Error 0d03E
Communication Error Reported by VFD

Error 0d06E
VFD Error. See P00 - dE.

Error 0d08E
Safety Interlock Error. VFD Physical Start

Error 2d07A
VFD Alarm. See P00- dE.

Error 2d09A
Motor Overload. Unloads Unit Until Current Reduces.

Error 3123R
Unit Below Minimum Temp

Error 3137R
Blowing Down

Error 3d04R
Drive Type Mismatch

Error 3d05R
Motor Type Mismatch

Service
0010

Technician
8192

User
0009

Menu Layout
