DMD Dryer
Reset Service
Remove plastic cover above controller. Find magnetic reed switch on top of controller. Place magnet near switch to reset service alarm.DTS Dryer
Service Mode
User: NORTEC Password: 1234Dryer
Default
10ESD Dryer
Maintenance
2013 or older, a jumper wire is required between terminals #1 and #27. Then press and hold the "P" button for 5 seconds. Then enter 10 for the security code, enter to save. Once filter change is selected, press and hold the up & down arrow keys simultaneously for 15 seconds to reset. Post 2013, a jumper wire is not required. However,the security code is the same, "10". Once maintenance is selected, it will ask for another code. Which is "1071". Press and hold the up and down arrow keys simultaneously for 10 seconds to reset.Microvisor 2-v

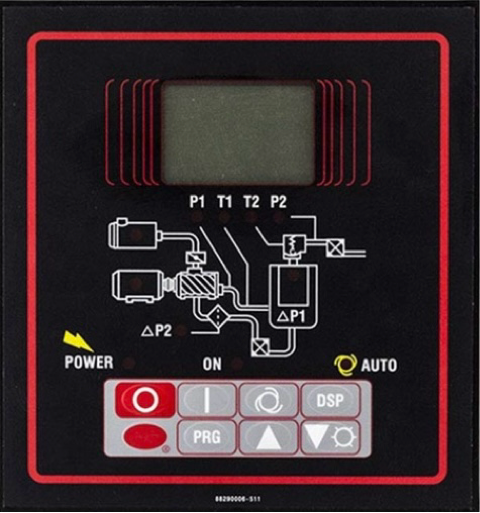

SRL Dryer
Supervisor
Factory Setup
If a number appears you must take this number, multiply by 2 and then add 3. For example, if 22 shows then (22 * 2) + 3 = 47.

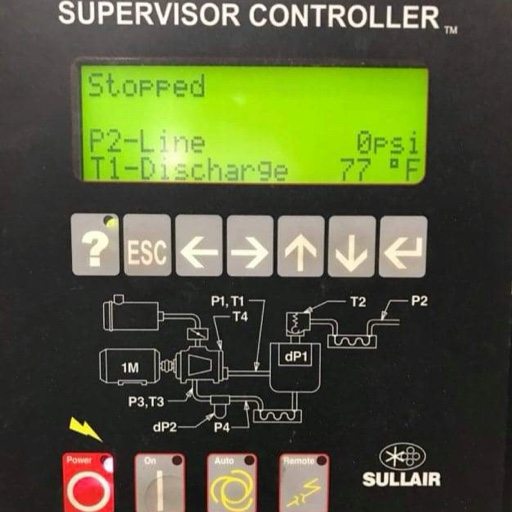

User ManualSupervisor II
Calibrate Sensors
Logo -> Up -> DSP -> Down -> PRG
Factory Setup
Press E-Stop. Press logo button then PGM. If a number appears you must take this number, multiply by 2 and then add 3. For example, if 22 shows then (22 * 2) + 3 = 47. Use logo key to go up by 10 and up arrow to go up by 1. Down arrow goes down by 1. When at the correct password press PGM.
Sequencing Manual
User Manual
Sullair
