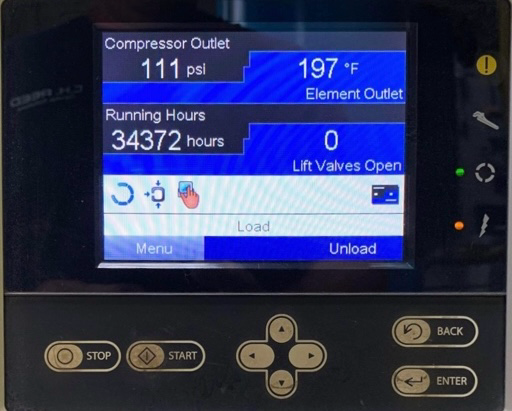

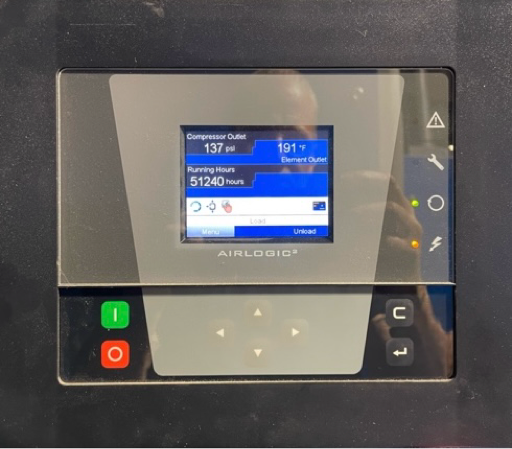

Airlogic 2
Auto Restart
4735
Maintenance
1304Infologic
Auto Restart

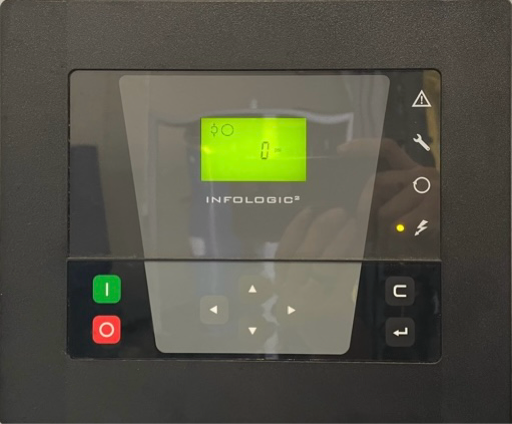

0003Infologic 2
Parameter Adjustment
2801
Reset Maintenance

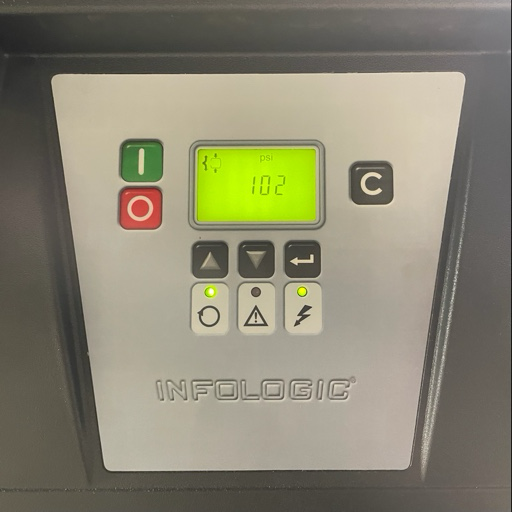

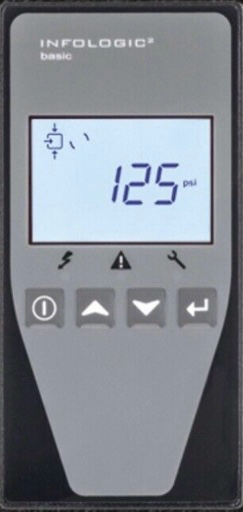

Scroll to menu d.06 and press enter. Maintenance hours will be displayed. Press enter and the maintenance icon will begin to flash. Press enter again and hours should reset to 0.Infologic Basic
Service Timer
Press enter for 3 seconds from Main Menu to enter submenus dAtA (Data)Running Hours Motor Starts Module Hours Loading Hours Load Solenoid Valve Service Timer - Hold enter for 3 seconds and “PASS” comes up. Enter 9989 and hit enter. RESN comes up, press up once to RESY and hit enter. Screen will flash and timer has been reset.
Setup
9888
Wizard
4321 - reset - yes - select parameter file (ex D128 is DOL 128psi S128 is Star 128 psi) - Enter controller will reset after program flashes.

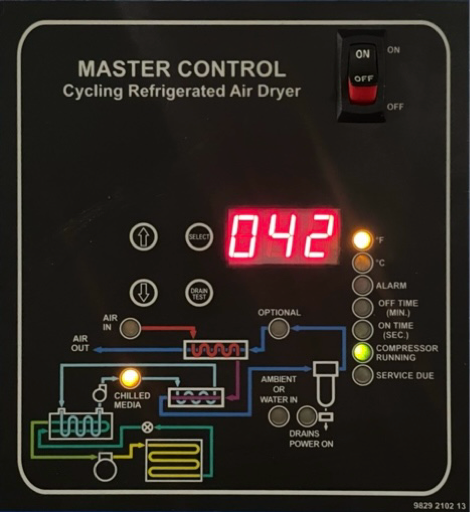

Reprogramming GuideMaster Control
Reset Service
Press Up, Down and Select at the same time. Display will show accumulated hours in 10’s of hours. Press and hold Select for 5 seconds. Press Up and Down at the same time to exit.Net$ync II Cyber Console
Default IP Address
192.168.1.2
Default Username - admin
pwadmin
Default Username - user
pwuser
Default Username - view

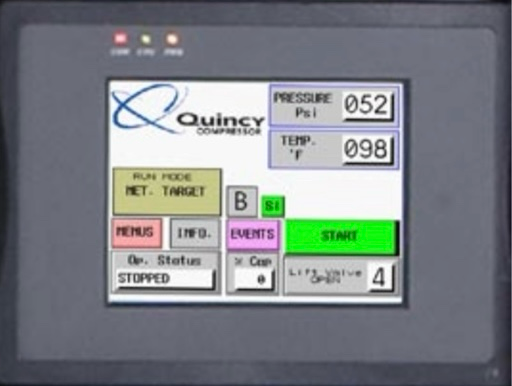

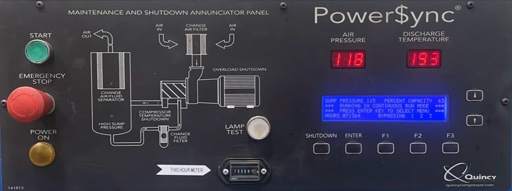

pwviewPower$ync
Clear EEPROM
From the main screen, press in order Enter-F3-Down-F1-Up-F3-F3-Up.
Commisioning
From the main screen, press in order F1-F3-Down-Up.
Lock Panel
From the main screen, press in order Up-Down-Up-Enter. Repeat in the same order to unlock.
Lock Panel Setup
While compressor is stopped press in order Up-Down-Shutdown.
Maintenance Menu II
From the main screen, press in order Enter-F3-Down-F2.
Optional Inputs
From the main screen, press in order F1-F3-Down-Down.
RTD Calibration
From the main screen, press in order F2-Up-Down-F3-F2.
Serial Port Test
From the main screen, press in order F3-F3-F3.
Service Menus
From the main screen, press in order Enter-F3-Down-F1.
Transducer Scale
From the main screen, press in order Enter-F3-Down-F1-Up-F3-F3-F3.
Service Adjustments

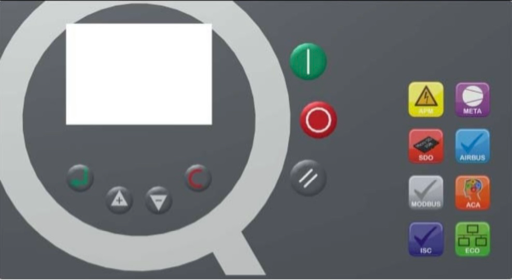

User ManualQ1
Admin
2308
Service

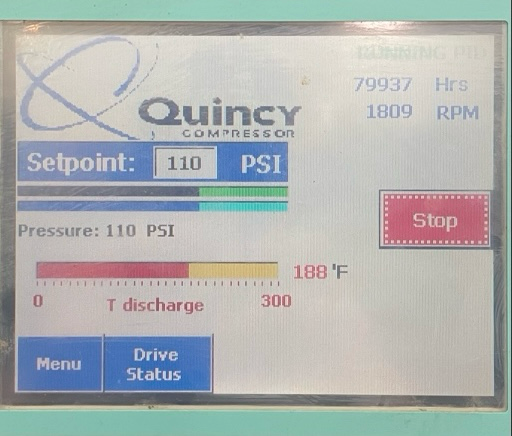

1234QGV
Default

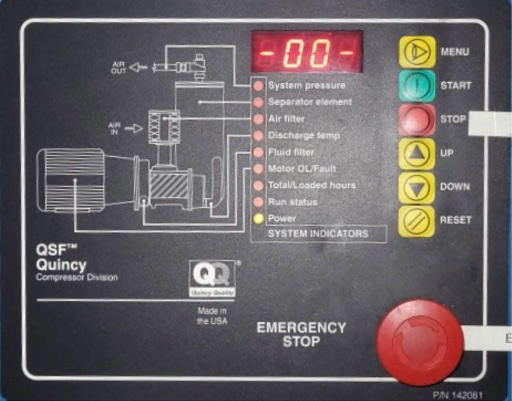

100QSF
Reset Maintenance
Hold up and down arrows until display flashes -00-. Use up arrow to go to menu -02- and hold stop button until it stops flashing. Hold up arrow to increase hours, when the desired number of hours is reached wait until the display stops flashing then press Menu to move to the next maintenance item. After all items are set press the Reset button to exit.
Quincy
