CompAir

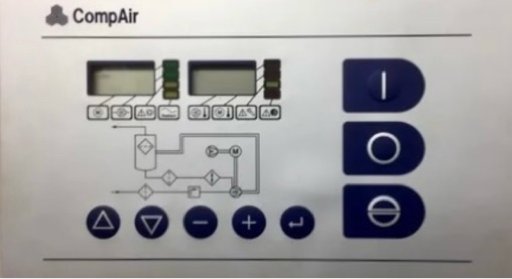

Delcos 1000

Service
Press and hold + & - for five seconds then press + + Up - Down + +.

Quick Reference

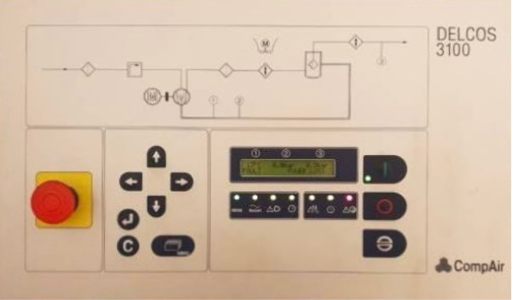

Delcos 3100

Change Units
Press Enter and Reset buttons at the same time.

Infinite Auto Restart
8888

Maintenance
3100

SR Fault 1
+15V control board supply over-voltage

SR Fault 10
+15V current sensor supply under-voltage

SR Fault 11
-15V current Sensor supply over-voltage

SR Fault 12
-15V current sensor supply under-voltage

SR Fault 13
+24V supply over-voltage

SR Fault 14
+24V supply under-voltage

SR Fault 15
Motor phase over-current (Phase A over-current, if multiple current sensors are used)

SR Fault 16
Motor phase B over-current (where multiple current sensors are used)

SR Fault 17
Motor phase C over-current (where multiple current sensors are used)

SR Fault 18
Negative motor current fault

SR Fault 19
DC link over-voltage

SR Fault 2
+15V control board supply under-voltage

SR Fault 20
System mode setting error

SR Fault 21
Voltage imbalance at DC link capacitor bank

SR Fault 22
Missing DC link voltage measurement interlock

SR Fault 23
Safety interlock signal missing (e-stop circuit fault)

SR Fault 24
FPGA WDT (Altera “watchdog” timer)

SR Fault 25
Main contactor interlock fault

SR Fault 26
Dynamic brake circuit over-current

SR Fault 27
Control PCB hardware fault latch

SR Fault 28
Mains phase sequence (“rotation”) incorrect

SR Fault 29
Mains supply voltage low

SR Fault 3
User” +15V supply over-voltage

SR Fault 30
DC link under-voltage

SR Fault 31
Phase A Motor Connection Fault

SR Fault 32
Phase B Motor Connection Fault

SR Fault 33
Phase C Motor Connection Fault

SR Fault 34
IGBT fault – A1 module

SR Fault 35
IGBT fault – A2 module

SR Fault 36
IGBT fault – B1 module B1

SR Fault 37
IGBT fault – B2 module

SR Fault 38
IGBT fault – C1 module

SR Fault 39
IGBT fault – C2 module

SR Fault 4
“User” +15V supply under-voltage

SR Fault 40
Dynamic braking IGBT fault

SR Fault 41
RS232 communications fault

SR Fault 42
Rotor sensor power supply fault

SR Fault 43
Rotor sensor fault (3-phase TEFV motors only)

SR Fault 44
Motor over-speed

SR Fault 45
Heatsink temperature sensor defect

SR Fault 46
Motor temperature sensor defect

SR Fault 47
Heatsink over-temperature

SR Fault 48
Motor over-temperature

SR Fault 49
Current sensor fault (phase A, if more than one current sensor is used)

SR Fault 5
-15V control board supply over-voltage

SR Fault 50
Current sensor fault – phase B, if used

SR Fault 51
Current sensor fault – phase C, if used

SR Fault 52
CAN communications failure

SR Fault 53
User enable” interlock signal missing

SR Fault 54
Motor stall fault

SR Fault 55
Pre-charge fault

SR Fault 6
-15V control board supply under-voltage

SR Fault 7
User” -15V control board supply over-voltage

SR Fault 8
“User” -15V control board supply under-voltage

SR Fault 9
+15V current sensor supply over-voltage

Setup
2222

Specialist
111

Technician
3011

User
3031

Extended Menus L-SR

Menus L-SR

SR Drive Fault Manual

User Manual L-RS

User Manual L-SR

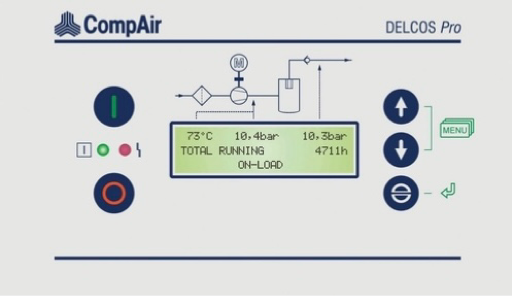

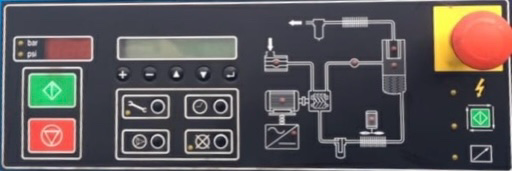

Delcos Pro

Change Units
Press and hold Reset and scroll with down arrow.

Infinite Auto Restart
8888

Setup
2222

Specialist
111

Technician
3011

User
3031

Quick Reference

User Manual L

User Manual L-RS

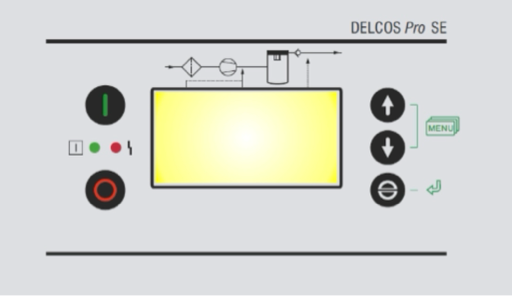

Delcos Pro SE

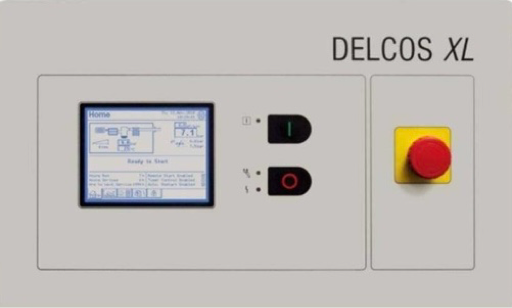

Delcos XL

BLS Enable
1234

Infinite Auto Restart
8888

Maintenance
3100

Setup
2222

Snapshot
7123

Specialist
0111

Speed Lock
09466

Technician
3011

User Manual

User Manual DH Series

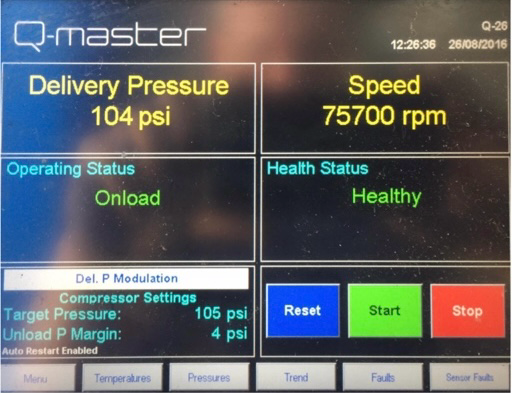

Q-Master

Commisioning
Enter service password then enter 1844.

Fixed Speed
5307

Service
5480

Web HMI
Use Saturn for username and password, both are case sensitive.

Communications Manual

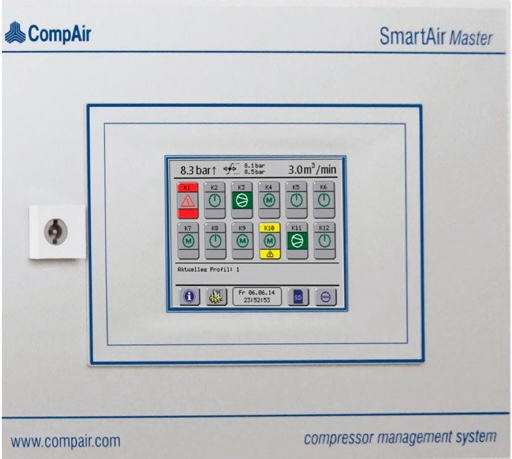

SmartAir Master

Login
7070

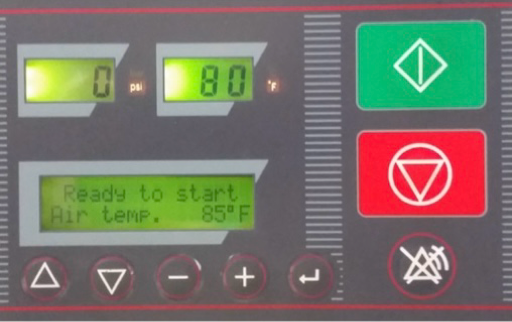

SureScan

Customer
Wrench Clock Wrench Clock

Diagnostics
Up Down - + Up Down

Max Speed Limit
Clock Triangle Triangle Clock

Model Designation
Wrench Wrench Triangle Triangle

Overcurrent Lockout
Triangle Wrench Wrench Wrench

SR Fault Manual

SureScan Compair Canada

Service
Up Down - + Up Down

Menu Structure
